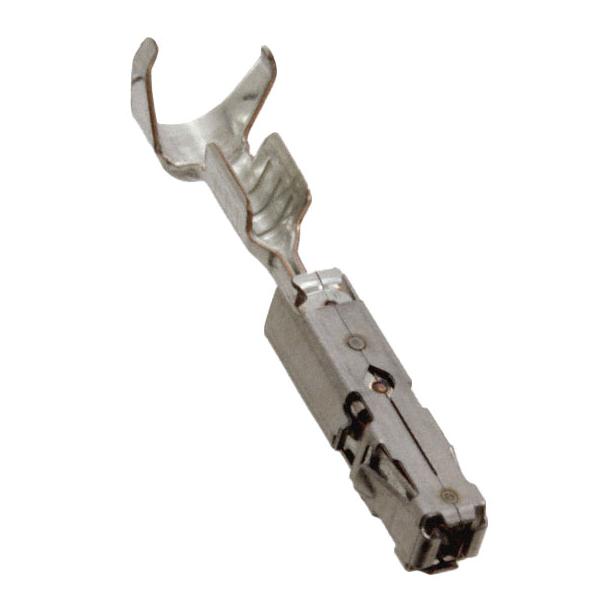

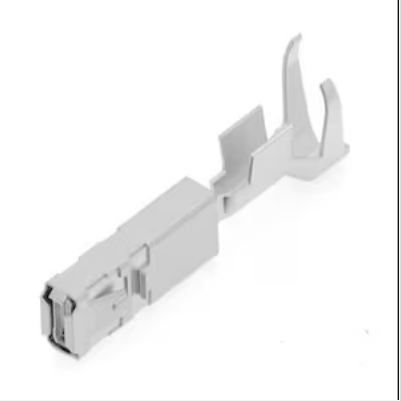

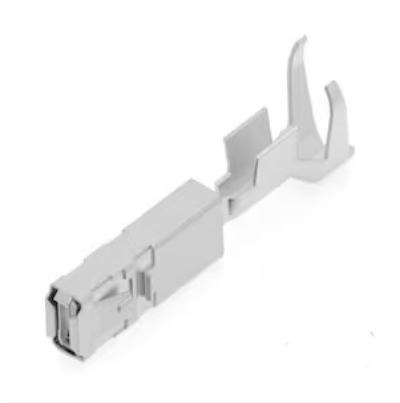

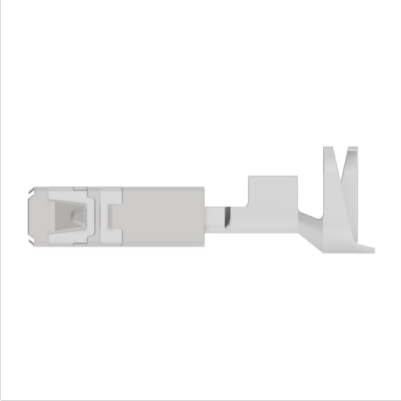

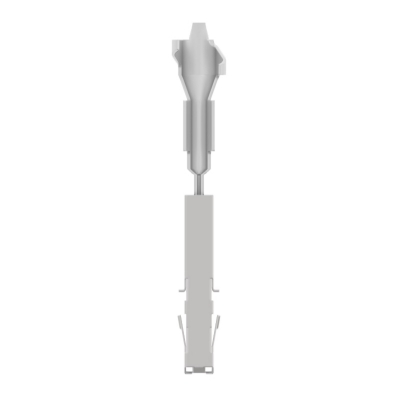

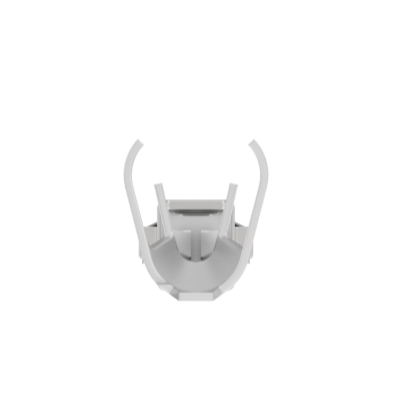

1241380-1 TE Connectivity Mating Tab Width 1.5 mm [.059 in], Tab Thickness .6 mm [.024 in], 20 – 17 AWG Wire Size
Short Description:
TE Internal #: 1241380-1
TE Internal Description: AMP MCP 1.5K, CONTACT, SWS
Terminal Type : Receptacle
Wire Size (AWG): 20 – 17
Wire Size (mm²): .5 – 1
Mating Tab Width : 1.5 mm [ .059 in ]
Interface Plating : Tin (Sn)
Product Detail
Product Tags
PART NUMBER:1241380-1
Manufacturer:TE Connectivity
Terminal Type:Female Socket (Receptacle)
Tab Width:1.5mm [.059"]
Tab Thickness:0.6mm [.024"]
Wire Size Range:20-17 AWG (0.5-1 mm²)
Current Rating :12A
Voltage Rating :300V AC/DC
Contact Material:Copper alloy with tin plating
Termination Type:Crimp (F-type)
Sealing Option:Single Wire Seal (SWS) available
Temperature Range:-40 – 130 °C [ -40 – 266 °F ]
Locking Mechanism:Locking gun feature
Data Overview
| Terminal Type | Receptacle |
| Wire Size (mm²) | .5 – 1 |
| Mating Tab Width | 1.6 mm [ .063 in ] |
| Interface Plating | Tin (Sn) |
| Primary Locking Feature | Locking Lance |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.5mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 12 |
