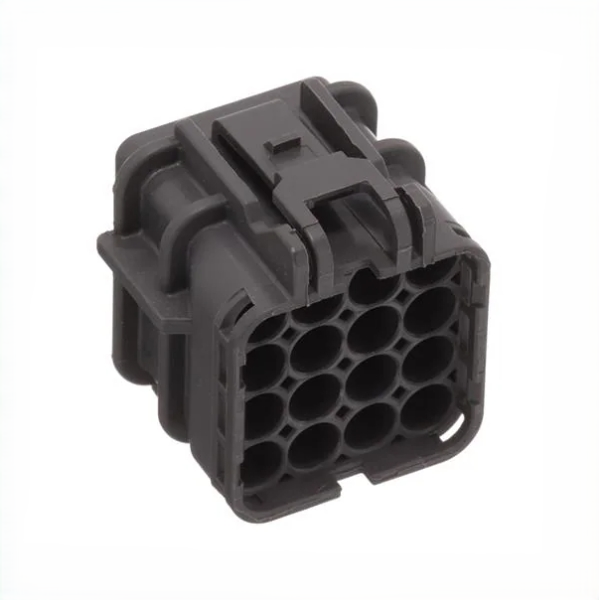

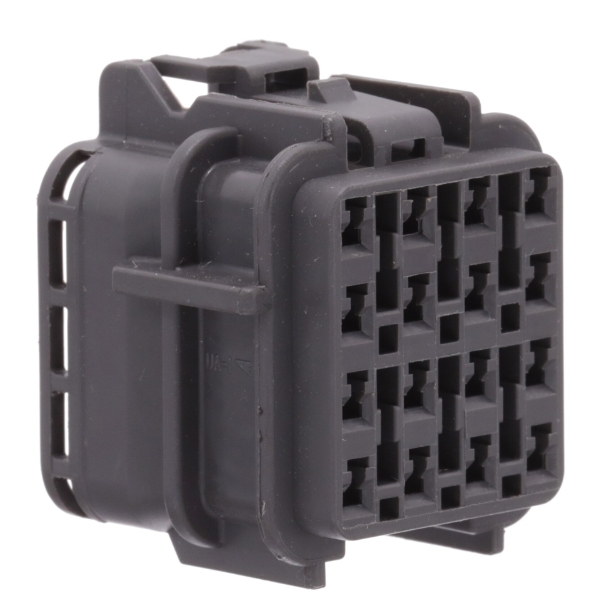

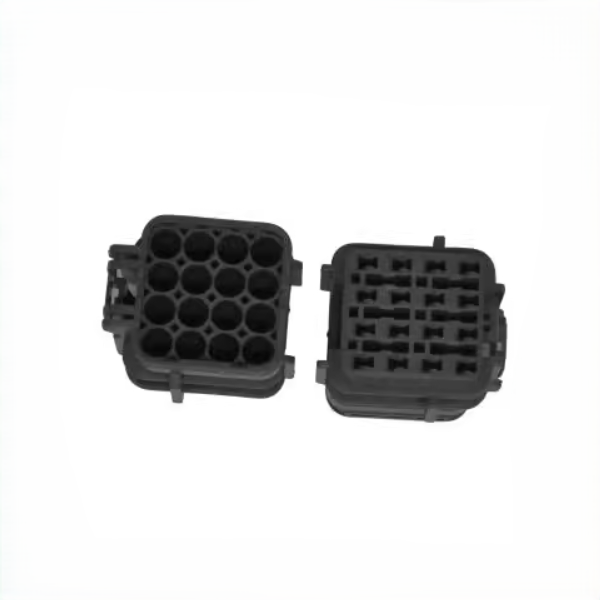

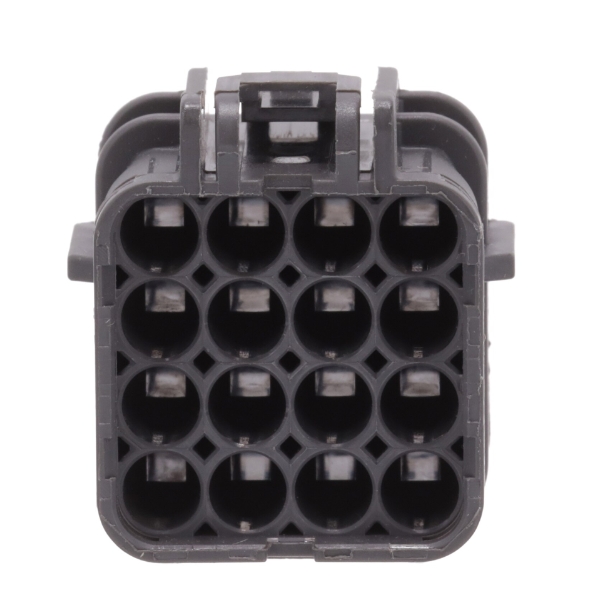

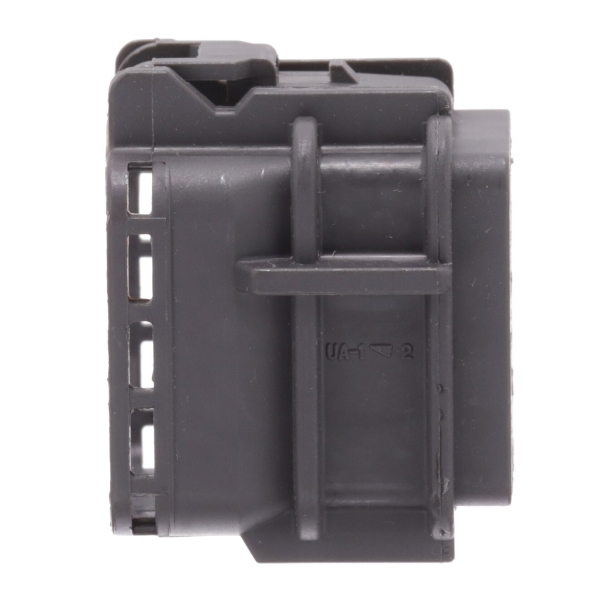

7123-7564-40AUTOMOTIVE CONNECTORS/SWP Connector Housing 16P Female Yazaki
Short Description:
Manufacturer：Yazaki
Model：7123-7564-40
Type：Female Housing (Empty Shell)
Family：SWP Connector
Poles：16P
Sealing：IP67 (with gasket)
Insulation resistance:100Megohm Min.(at 500VDC)
Withstand voltage:1000V AC (1min.)
Product Detail
Product Tags
Manufacturer:Yazaki
Yazaki Part Number：7123-7564-40
Product Category:Automotive Connectors
Family：SWP Connector
Product:Housings
Number of Positions:16 Position
Gender:Receptacle (Female)
Mounting Style:Cable Mount / Free Hanging
Termination Style:Crimp
Color:Gray
Allowable Current(Ref.)：9A(Ref)
Insulation resistance:100Megohm Min.(at 500VDC)
Withstand voltage:1000V AC (1min.)
Temperature Range:-40 to 120deg.C
Data Overview
| Male/Female | Female |
| Number of Poles | 16 |
| Tab size (mm) | 1.80 |
| Materials | PBT |
| Color | GRAY |
Contact Features
| Classified Parts | Housing |
| Family | SWP Connector |
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Sealed |
| Allowable Current(Ref.) | 9A(Ref) |
